Drone Accessories - 0.5KG Load Capacity 3-Axis Gimbal Frame

$299.00 USD $1,539.48 USD

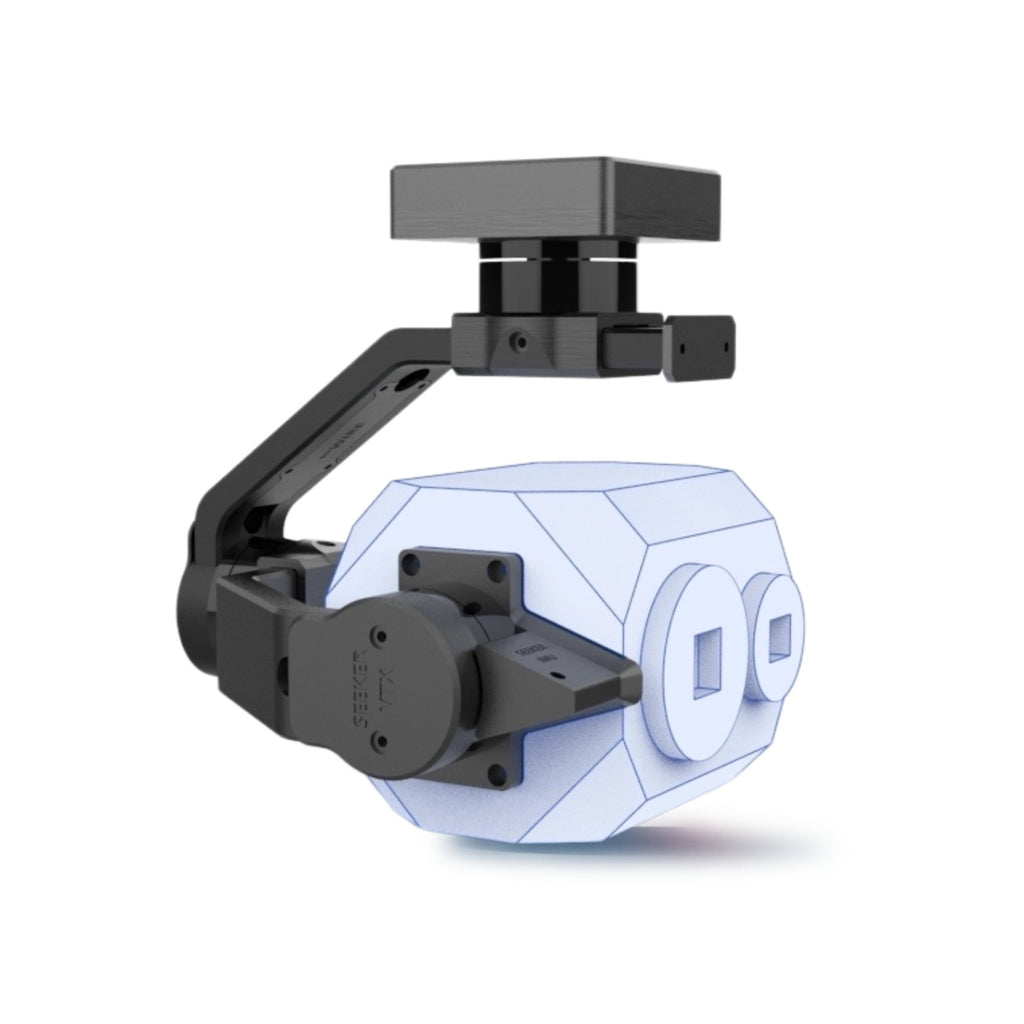

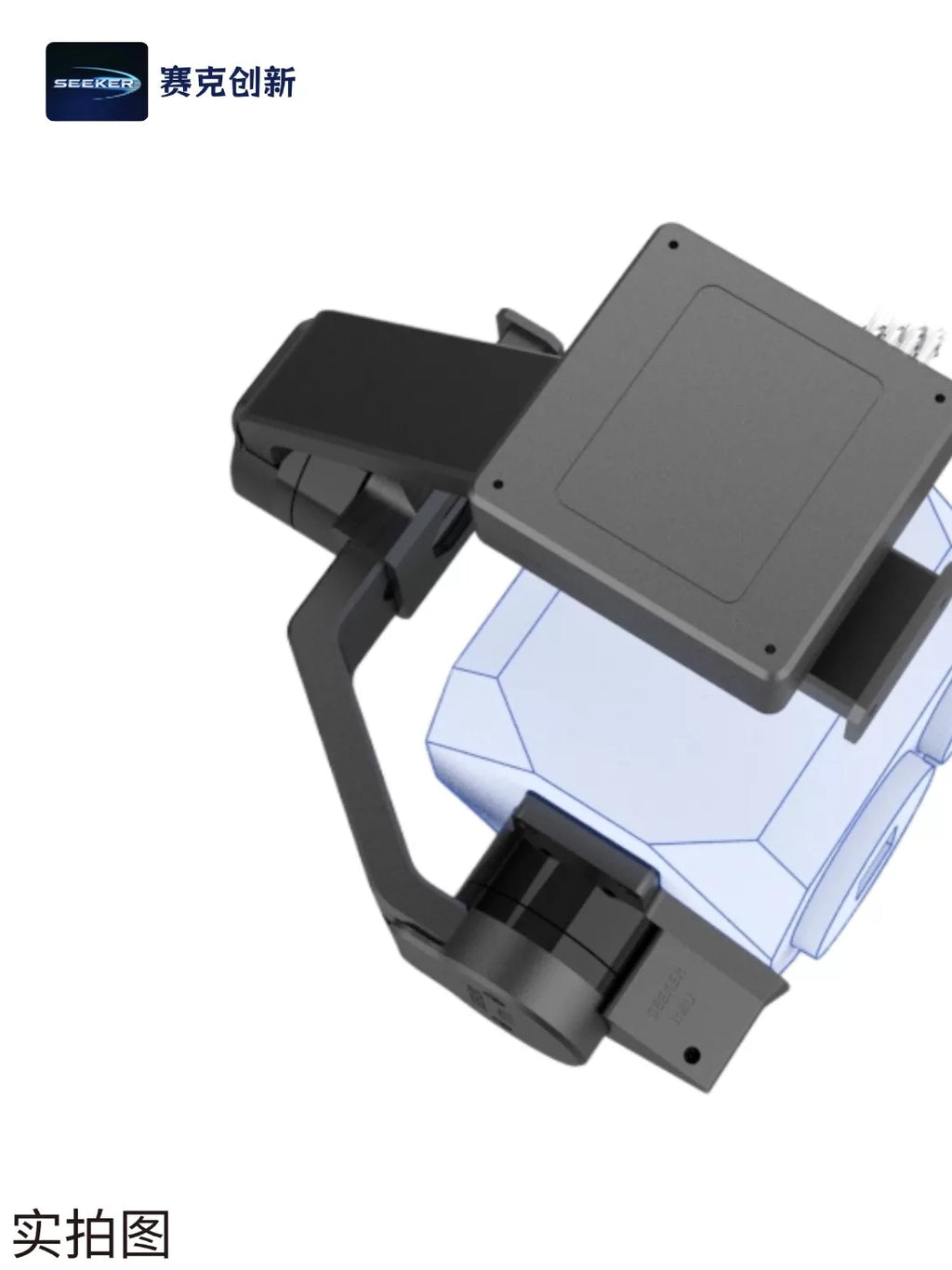

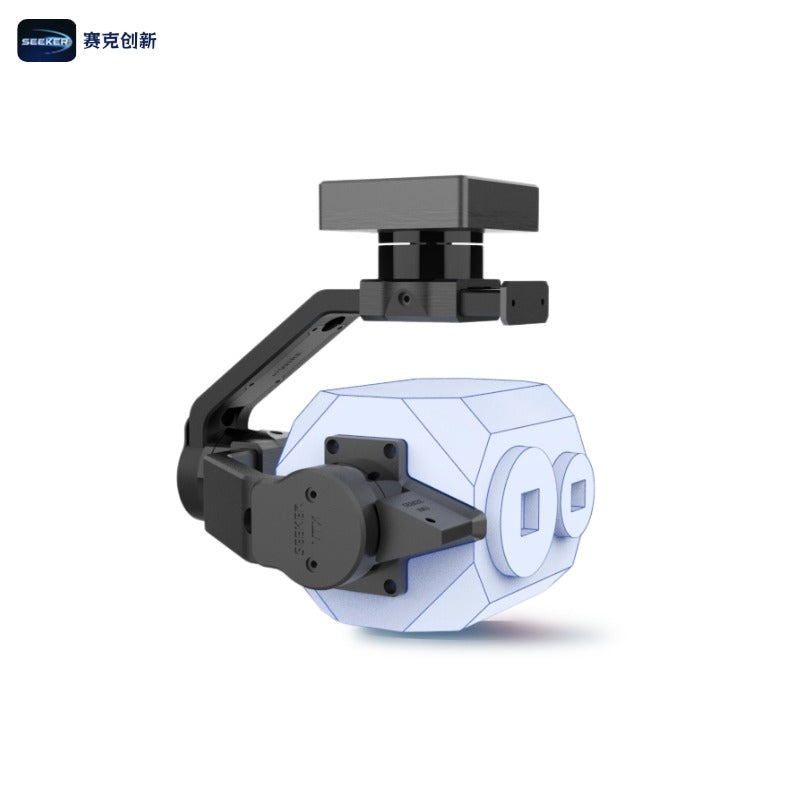

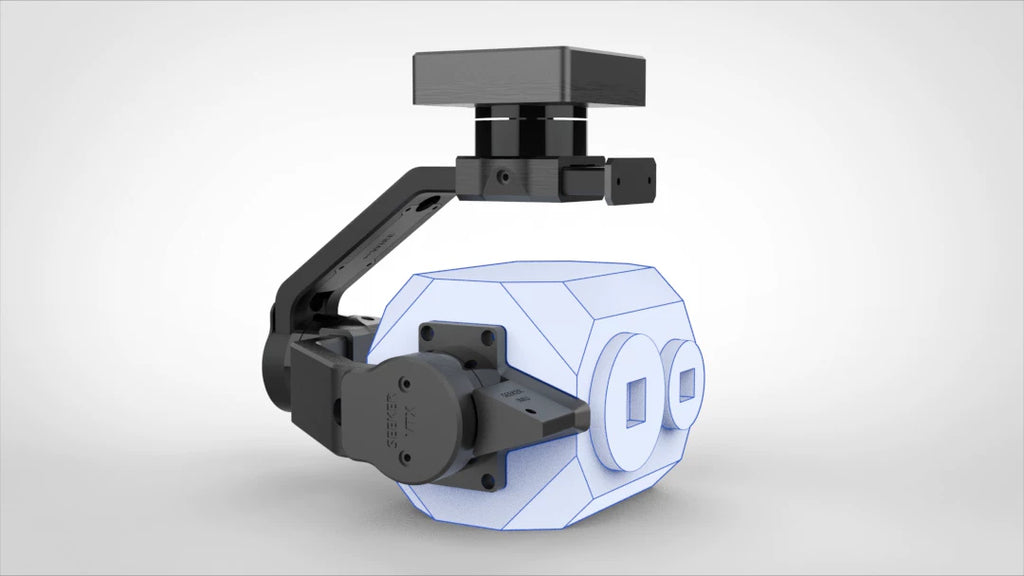

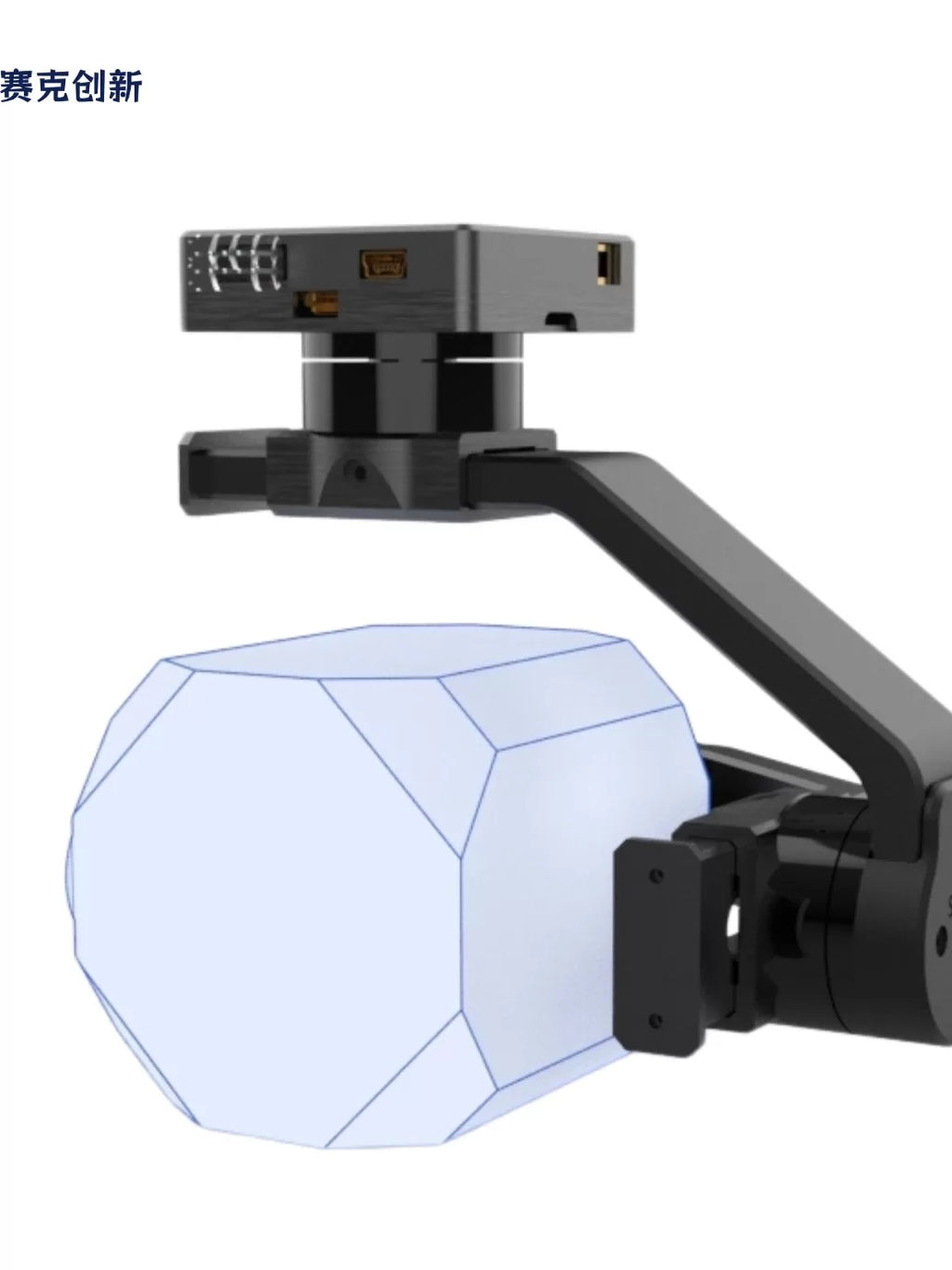

Skyfpv VTX — Compact 3-Axis Gimbal Frame for Lightweight Payloads

A lightweight, high-precision 3-axis stabilized gimbal frame engineered for sub-500g payloads. The VTX delivers rock-steady image stabilization, industrial-grade reliability and an open software interface for rapid integration — the smart starting point for builders, integrators and OEM customers.

Lightweight, High-Strength Build

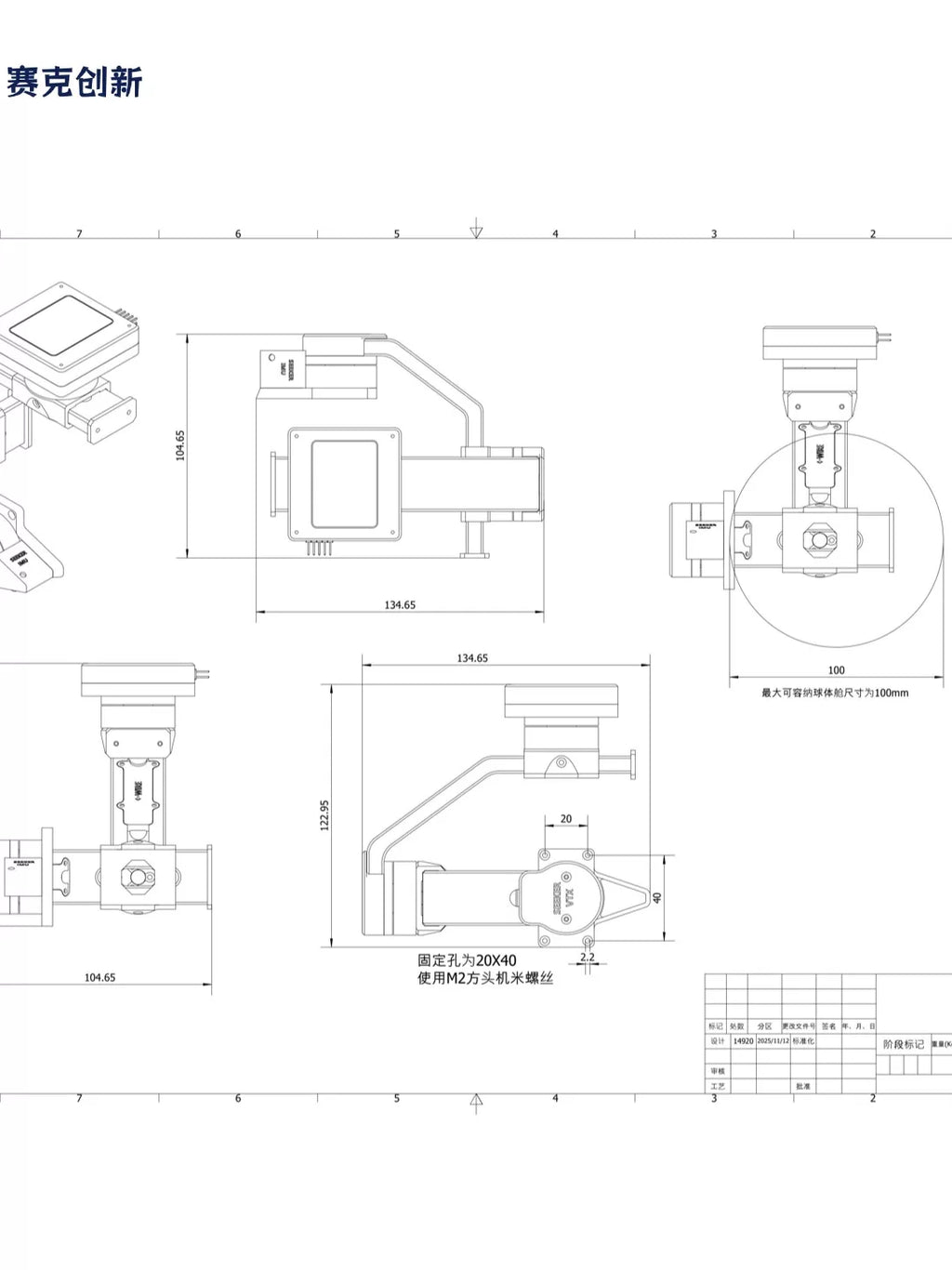

At only 170g with a compact 104 × 134 × 122mm form factor, the VTX minimizes impact on flight time and airframe payload budget, while the rigid frame keeps vibration away from your camera.

Precision Stabilization

High-torque GB3005 200KV motors hold a ±0.05° angle jitter, keeping footage stable even under aggressive flight maneuvers and moderate wind.

Wide Rotation Envelope

Pan ±330° and tilt −120° to +60° controllable range, with a structural design envelope of pan ±330° and tilt −130° to +90°, gives you full-frame mission coverage for aerial cinematography, inspection and surveying.

IP53-Rated for Field Use

Dust- and splash-resistant construction rated IP53, built for reliable outdoor operation across seasons and environments.

Flexible Installation

Supports both suspended and upright mounting to adapt to your airframe layout and center-of-gravity requirements.

Open SDK & Secondary Development

Software system STA32 with open interfaces enables custom control, sensor integration and secondary development for your specific application.

Wide Voltage Tolerance

Accepts DC 12V–18V input, compatible with most multirotor and fixed-wing power systems.

Technical Specifications

Model	VTX
Payload Capacity	0.5 kg
IP Rating	IP53
Dimensions	104 × 134 × 122 mm
Weight	170 g
Operating Voltage	DC 12V–18V
Angle Jitter	±0.05°
Installation Method	Suspended / Upright
Controllable Rotation Range	Pan ±330°, Tilt −120° to +60°
Structural Design Range	Pan ±330°, Tilt −130° to +90°
Maximum Control Speed	Pan 90°/s, Tilt 90°/s
Motor Model	GB3005 200KV
Software System	STA32

Skyfpv 3-Axis Gimbal Series Comparison

Specification	VTX · 0.5 kg	VTH · 1.5 kg	VTA PRO · 5 kg
Payload Capacity	0.5 kg	1.5 kg	5 kg
IP Rating	IP53	IP53	IP53
Dimensions	104 × 134 × 122 mm	206 × 174 × 216 mm	289 × 141 × 243 mm
Weight	170 g	600 g	1350 g
Operating Voltage	DC 12–18V	DC 12–24V	DC 12–18V
Angle Jitter	±0.05°	±0.01°	±0.01°
Controllable Range	Pan ±330°, Tilt −120°~+60°	Pan ±330°, Tilt −120°~+60°	Pan ±330°, Tilt −120°~+60°
Max Control Speed	90°/s	90°/s	90°/s
Motor	GB3005 200KV	M3 × 10 mount	GB6050 80KV
Software	STA32	SA32	ST32 PRO

Need a custom configuration, OEM/ODM production or volume pricing? Talk to our engineering team — we respond within one business day.

Shipping & Delivery

We ship worldwide from our facility in Shenzhen, China. All orders are processed and dispatched within 1-3 business days after payment confirmation.

Standard Shipping: 7-15 business days worldwide, with tracking.
Expedited Shipping: 3-7 business days, available at checkout.

You will receive a tracking number by email once your order ships. International orders may be subject to import duties and taxes levied by the destination country, which are the responsibility of the buyer.

Returns & Warranty

We offer a 30-day return policy on eligible items. Products must be unused, unmodified and returned in original packaging with all accessories included.

For damaged or defective items, please contact us at sales@skyfpv.net within 7 days of delivery with photos, and we will arrange a replacement or full refund including shipping costs.

All gimbal frames come with technical support from our engineering team. Custom configurations and OEM/ODM projects are welcome.
