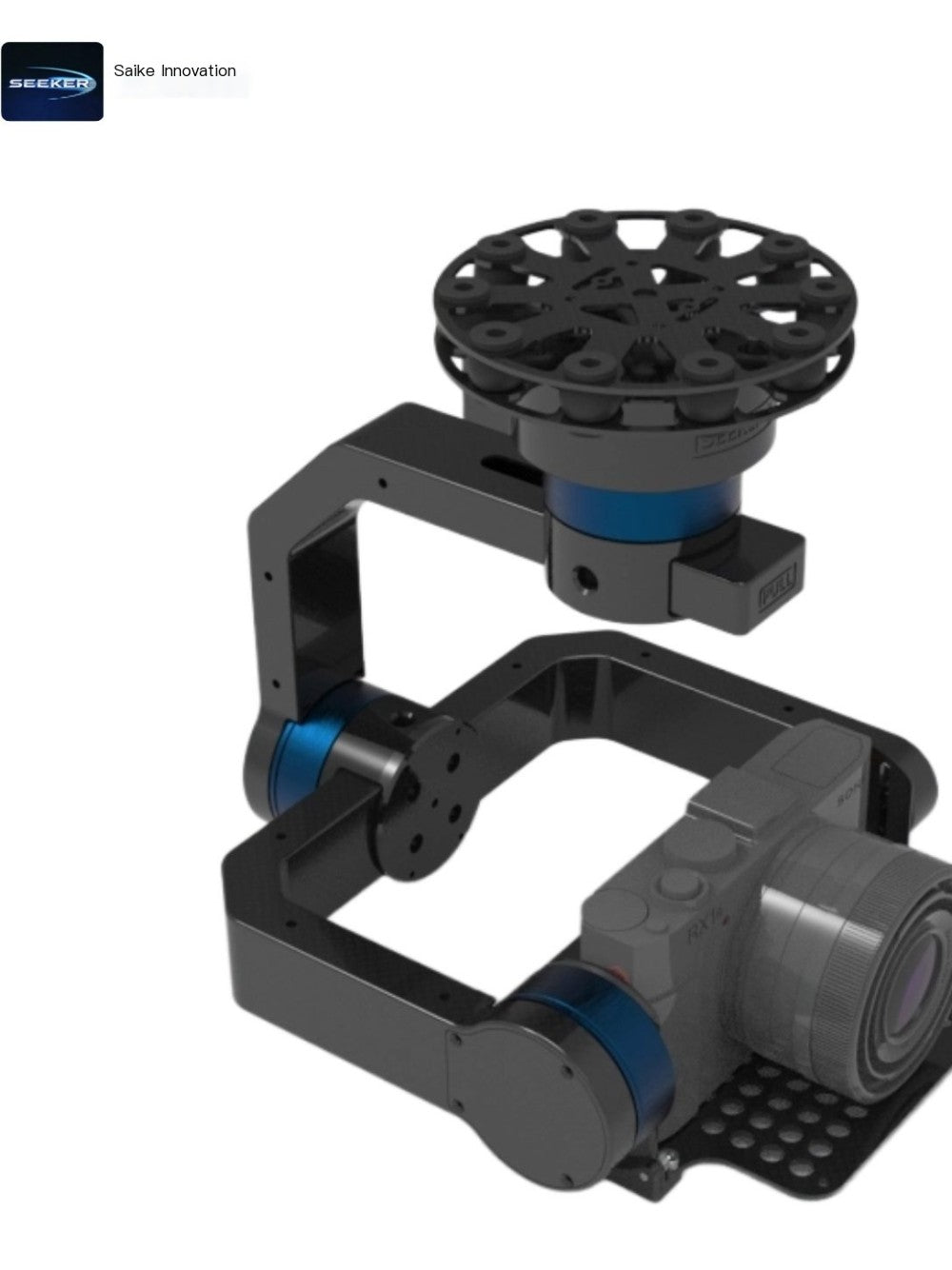

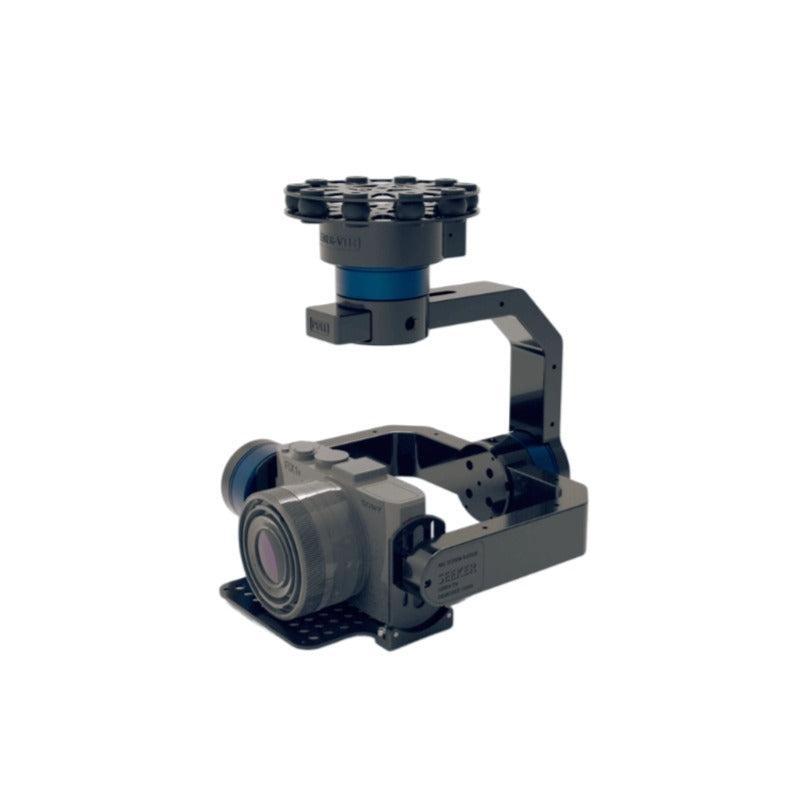

Skyfpv VTH — Professional 3-Axis Gimbal Frame for Mid-Size Payloads

A professional-grade 3-axis stabilized gimbal frame built to carry payloads up to 1.5kg with ±0.01° precision. The VTH pairs a rigid, vibration-isolated structure with an open control interface — engineered for aerial cinematography, inspection, surveying and custom industrial missions.

High-Precision Stabilization

Delivers an extremely low ±0.01° angle jitter, keeping professional camera systems and sensitive sensors stable for crisp, cinema-grade footage and reliable data capture.

Capable of Significant Payloads

A large, well-balanced frame design carries leading payloads up to 1.5kg — full-frame mirrorless cameras, thermal/optical payloads and multi-sensor combinations.

Rigid & Vibration-Isolated Build

With a 206.47 × 174.48 × 216.50mm frame weighing just 600g, the VTH keeps structural rigidity high and weight low, reducing the impact on flight performance.

Wide Rotation Envelope

Pan ±330° and tilt −120° to +60° controllable range with a structural envelope of pan ±330° and tilt −130° to +90° for full mission coverage.

Wide Voltage Compatibility

Accepts DC 12V–24V input for flexible integration across power systems, including higher-voltage industrial platforms.

IP53-Rated for Field Use

Dust- and splash-resistant construction rated IP53, built for reliable outdoor operation across seasons and environments.

Open SDK & Secondary Development

Software system SA32 with open interfaces enables custom control, sensor integration and secondary development for your specific application.

Technical Specifications

Model	VTH
Payload Capacity	1.5 kg
IP Rating	IP53

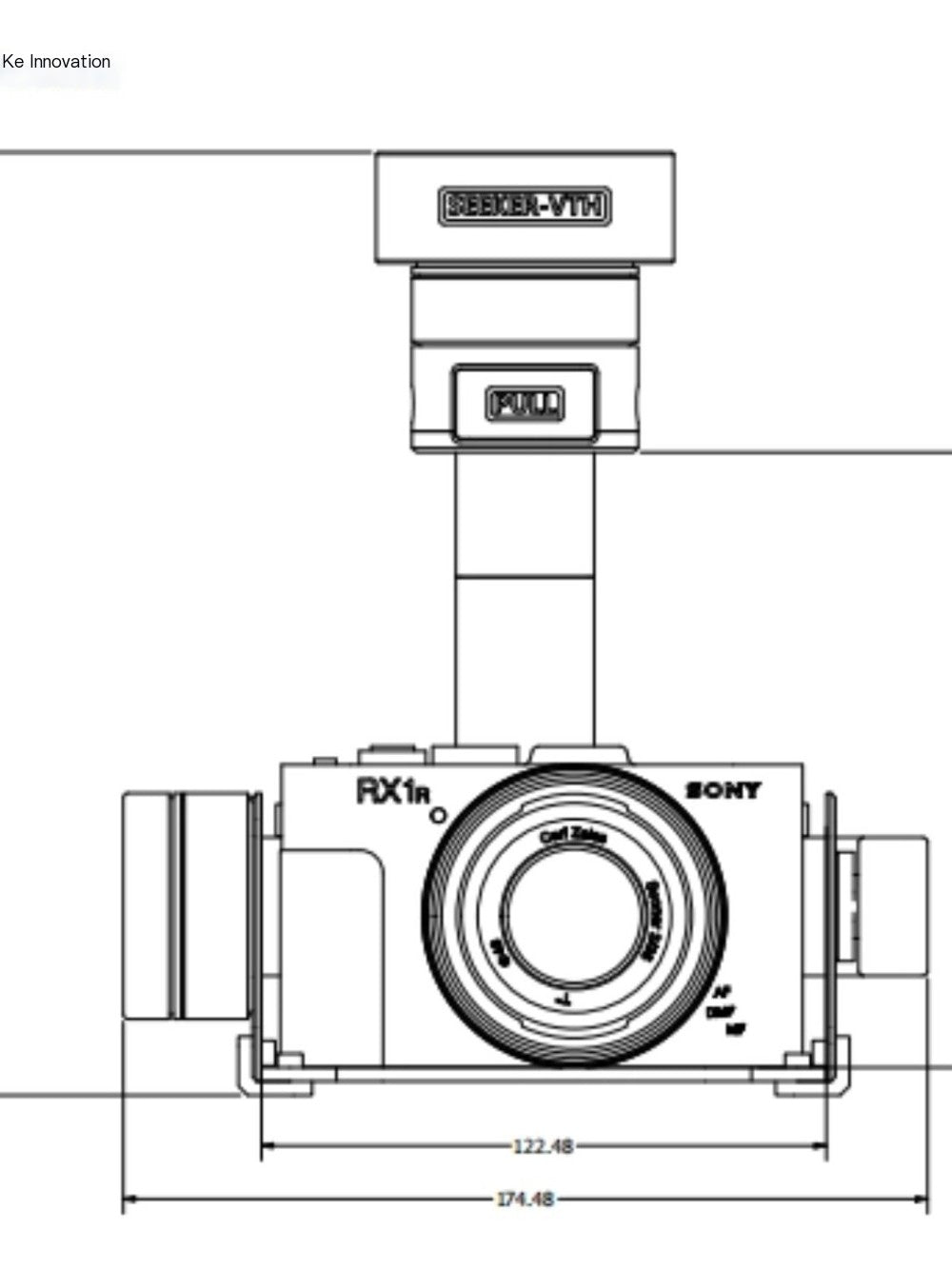

Dimensions	206.47 × 174.48 × 216.50 mm
Weight	600 g
Operating Voltage	DC 12V–24V
Angle Jitter	±0.01°
Installation Method	Suspended / Upright
Controllable Rotation Range	Pan ±330°, Tilt −120° to +60°
Structural Design Range	Pan ±330°, Tilt −130° to +90°
Maximum Control Speed	Pan 90°/s, Tilt 90°/s
Motor Mount	M3 × 10 screw hole
Software System	SA32

Skyfpv 3-Axis Gimbal Series Comparison

Specification	VTX · 0.5 kg	VTH · 1.5 kg	VTA PRO · 5 kg
Payload Capacity	0.5 kg	1.5 kg	5 kg
IP Rating	IP53	IP53	IP53
Dimensions	104 × 134 × 122 mm	206 × 174 × 216 mm	289 × 141 × 243 mm
Weight	170 g	600 g	1350 g
Operating Voltage	DC 12–18V	DC 12–24V	DC 12–18V
Angle Jitter	±0.05°	±0.01°	±0.01°
Controllable Range	Pan ±330°, Tilt −120°~+60°	Pan ±330°, Tilt −120°~+60°	Pan ±330°, Tilt −120°~+60°
Max Control Speed	90°/s	90°/s	90°/s
Motor	GB3005 200KV	M3 × 10 mount	GB6050 80KV
Software	STA32	SA32	ST32 PRO

Need a custom configuration, OEM/ODM production or volume pricing? Talk to our engineering team — we respond within one business day.
